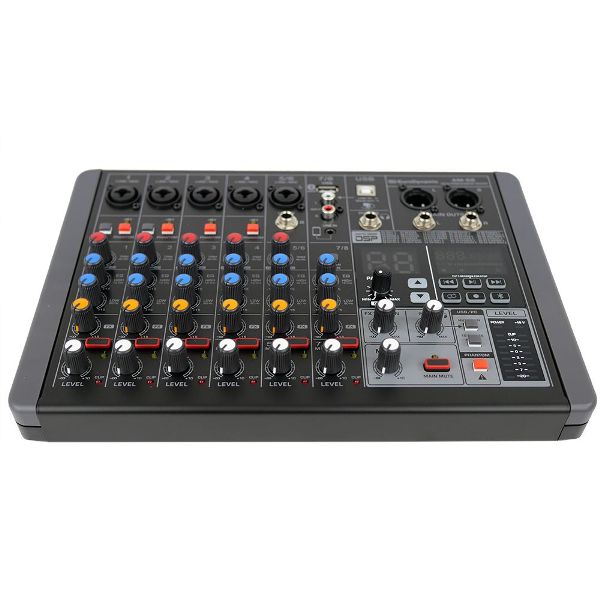

MICROPHONE INPUTS (XENYX MIC PREAMP)
Type: XLR, electronically balanced, discrete input circuit
Mic E.I.N. (20 Hz – 20 kHz)
@ 0 Ω source resistance: -134 dB / 135.7 dB A-weighted
@ 50 Ω source resistance: -131 dB / 133.3 dB A-weighted
@ 150 Ω source resistance: -129 dB / 131.5 dB A-weighted
Frequency response
<10 Hz – 150 kHz (-1 dB)
<10 Hz – 200 kHz (-3 dB)
Gain range: +10 dB to +60 dB
Max. input level: +22 dBu @ +10 dB Gain
Impedance: approx. 2.6 kΩ balanced
Signal-to-noise ratio: 110 dB / 112 dB A-weighted
Distortion (THD+N): 0.005% / 0.004% A-weighted
LINE INPUT Type: 1/4″ TRS connector electronically balanced
Impedance: approx. 20 kΩ balanced
Gain range: -10 dB to +40 dB
Max. input level: 30 dBu
FADE-OUT ATTENUATION (CROSSTALK ATTENUATION)
Main fader closed: 90 dB
Channel muted: 89 dB
Channel fader closed: 89 dB
FREQUENCY RESPONSE
Microphone input to main out
<10 Hz – 90 kHz: +0 dB / -1 dB
<10 Hz – 160 kHz: +0 dB / -3 dB
STEREO INPUTS
Type: 1/4″ TRS connector, electronically balanced
Impedance: approx. 20 kΩ
Max. input level: +22 dBu
EQ MONO CHANNELS
Low: 80 Hz / ±15 dB
Mid: 2.5 kHz / ±15 dB
High: 12 kHz / ±15 dB
EQ STEREO CHANNELS
Low: 80 Hz / ±15 dB
Mid: 2.5 kHz / ±15 dB
High: 12 kHz / ±15 dB
AUX SENDS
Type: 1/4″ TS connector, unbalanced
Impedance: approx. 120 Ω
Max. output level: +22 dBu
STEREO AUX RETURNS
Type: 1/4″ TRS connector, electronically balanced
Impedance: approx. 20 kΩ balanced / 10 kΩ unbalanced
Max. input level: +22 dBu
MAIN OUTPUTS
Type: XLR, electronically balanced
Impedance: approx. 240 Ω balanced / 120 Ω unbalanced
Max. output level: +28 dBu
CONTROL ROOM OUTPUTS
Type: 1/4″ TS connector unbalanced
Impedance: approx. 120 Ω
Max. output level: +22 dBu
HEADPHONES OUTPUTS
Type: 1/4″ TRS connector, unbalanced
Max. output level: +19 dBu / 150 Ω (+25 dBm)
DSP
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
MAIN MIX SYSTEM DATA
Noise
Main mix @ 0 dB, channel fader @ -?: -101 dB
Main mix @ 0 dB, channel fader @ 0 dB: -86 dB
Distortion (THD+N)
Main mix @ 0 dB, 1 kHz: 0.0007%

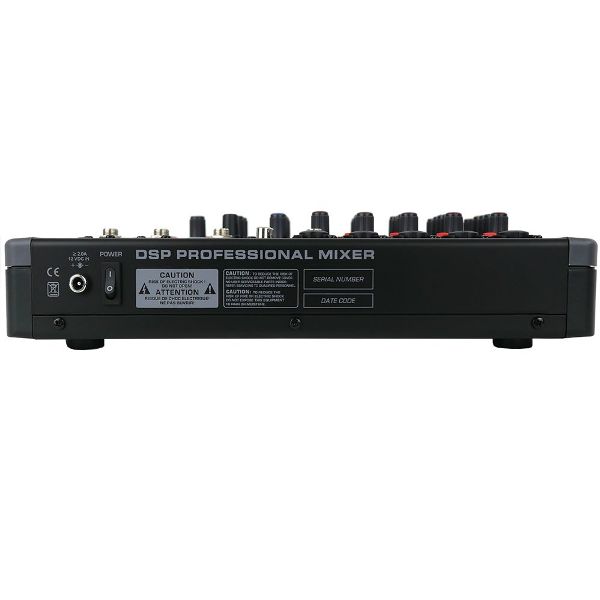

POWER SUPPLY
Mains voltage: 230V~, 50/60 Hz
Power consumption: (specific details not provided)
Fuse
Mains connection: 230V~: T 1.2 A H 250V
Standard IEC receptacle
